Tube Rupture Credibility Assessments (TRCAs)

The most cost-effective relief device is the one you can prove you don’t need.

A tube rupture credibility assessment (TRCA) determines whether a full-bore tube rupture is credible for a specific heat exchanger – and in over 99% of TRCAs we performed, it wasn’t credible. Often when a PHA or pressure relief system revalidation identifies a tube rupture overpressure scenario, the default response is to install new hardware – a potential $50,000 to $500,000 capital project requiring a shutdown and 6 to 12 months to execute.

There is a better and more cost-effective way. API 521 states if a rigorous engineering analysis can prove that a full-bore tube rupture is non-credible for your specific exchanger, dedicated overpressure protection for that scenario is not required. Equity Engineering’s TRCA evaluates whether the scenario is credible by considering design, metallurgy, inspection history, and operating conditions.

We’ve conducted more than 200 TRCAs over 18 years and helped refineries and petrochemical facilities avoid millions in unnecessary capital expenditure.

Before committing capital to any relief system upgrade for the tube rupture case, perform a TRCA.

Contact our Team

When Equity determines that a tube rupture scenario is non-credible, that conclusion is backed by engineers who helped shape the API 521 standard and actively work to improve its guidance today.

200+

TRCAs Completed

>99%

non-credible

What Is a Heat Exchanger Tube Rupture?

When a heat exchanger operates with a significant pressure differential between the tube side and shell side, a tube failure can force high-pressure fluid into the low-pressure side exceeding the design pressure and potentially damaging the exchanger or attached piping system.

Though overpressure of the low-pressure side is the most common concern, a tube rupture can also cause other process disruptions like:

  • Uncontrolled mixing of incompatible process fluids
  • High-pressure hydrocarbon stream entering a cooling water circuit
  • Toxic process fluid breaching into a utility system


These failure modes carry safety, environmental, and regulatory consequences that go well beyond the pressure relief question.

When Is the Right Time to Perform a TRCA?

Close the Risk Before It Becomes a Finding

The highest-value TRCA is proactively performed before a revalidation study forces your hand or before turnaround scope is set and contractors default to installing a PSV replacement or full-bore rupture disks.

Whether refineries or petrochemical facilities know it or not, heat exchangers operating under significant pressure differentials are carrying potential tube rupture findings. Equity Engineering’s TRCA will proactively screen those exchangers, deliver PE-stamped documentation, and lower the risk of a costly surprise during the next revalidation cycle.

For turnaround planners: every PSV replacement or rupture disk installation eliminated by a TRCA is money and time saved with room/resources for critical scope recovered.

Tube Rupture Findings and OSHA PSM Compliance

Turn a Regulatory Liability Into a Closed Finding

An unresolved process hazard analysis (PHA) or pressure relief system (PRS) revalidation action item is not just an engineering gap; under OSHA PSM requirements, it’s a regulatory liability. Refineries or petrochemical facilities that identify a deficiency and fail to act can face serious or willful violation classifications, with significant civil penalties per violation.

Achieve compliance and prevent unnecessary regulatory fines with a TRCA. A non-credible finding produces PE-stamped, audit-ready documentation that closes the PHA finding and eliminates the capital expenditure and the shutdown while saving your maintenance team 6 to 12 months.

For PSM and process safety managers: the TRCA is the rigorous engineering analysis that gives you regulatory defensible documentation that either proves the issue is not credible or defines the next steps to take if it does.

Equity Engineering’s TRCA Methodology

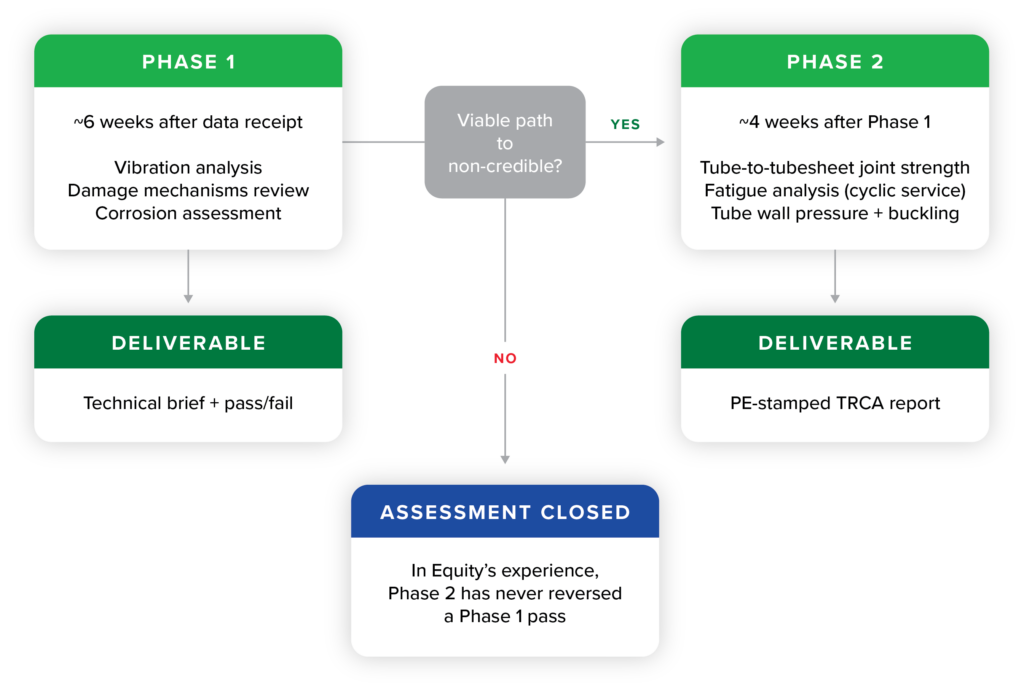

The TRCA is a multidisciplinary assessment aligned with API 521 that integrates four key analytical pillars which each contribute to the final credibility determination across two project phases.

Tube vibration analysis & erosion check

The exchanger is modeled to evaluate flow-induced vibration risk, tube-to-baffle chafing potential, and whether operating velocities create erosion concerns in the bundle or at shell entrance and exit nozzles. TRCA assessments may include a model of the exchanger: a permanent engineering asset that supports future re-rates, debottleneck studies, fouling assessments, and process optimization.

.

Metallurgical & corrosion analysis (damage mechanism review)

This pillar identifies degradation mechanisms capable of producing sudden, catastrophic tube failure (e.g., stress corrosion cracking, brittle fracture, and creep) across normal and transient operating conditions. The results directly shape the inspection program and define the conditions for a management-of-change (MOC) review.

Important: A non-credible determination is conditional, not permanent. Because changes in process conditions, fluid chemistry, or inspection program adequacy can reactivate mechanisms previously assessed as having a low rupture potential, the inspection program is a required part of any valid determination.

Tube-to-tubesheet joint design

Tube pullout loads from pressure and thermal effects are calculated and compared against allowable limits. For exchangers in cyclic service, a fatigue assessment is also performed.

Bundle inspection program review

The existing inspection program is evaluated for adequacy against the identified damage mechanisms. Where gaps exist, we develop a forward-looking plan tailored to the specific exchanger, covering NDE method selection, inspection locations, frequency, and acceptance criteria.

Tube Rupture Credibility Assessments for New Exchanger Design

Apply at the Design Stage to Maximize Value

Most TRCAs are triggered by a revalidation finding on an existing exchanger. But applying the same methodology during the design phase when changes are still straightforward and inexpensive to implement can eliminate costly relief infrastructure before the exchanger is ever built.

When engineering contractors default to sizing the low-pressure side for a full-bore rupture, the result is often oversized relief devices, large relief nozzles that force shell extensions, and complex piping collection systems, all of which add cost, weight, and footprint to a new design. A TRCA performed before fabrication can eliminate that scope entirely.

API 521 Mitigation Methods

API STD 521, Pressure Relieving and Depressuring Systems, is the industry standard (RAGAGEP) for PRS design. It recognizes two approaches for addressing the tube rupture overpressure scenario.

  Mitigation Method 1  Mitigation Method 2 — Equity’s TRCA
Approach  Assumes a full-bore tube rupture is credible; sizes the relief system accordingly  Performs a detailed engineering analysis to determine whether a full-bore tube rupture is actually credible for the specific exchanger
Typical timeline  6–12 months from scoping to installation  6–10 weeks
Shutdown required  Yes  No
Typical capital cost  $50,000–$500,000+ per exchanger  A fraction of the hardware cost
Hardware required  Larger PSVs, rupture disks, upsized piping, possible shell modifications  None if scenario is non-credible
Documentation produced  Relief system design package  PE-stamped, API 521-compliant report; closes PHA/revalidation finding directly
Damage mechanism-based inspection review  Existing program unchanged  Yes — required element of the determination
Result if scenario is non-credible  Unnecessary capital spent  Capital avoided entirely

Case Study: New Design — MRU Inlet Gas Heater

Natural gas processing | Houston, TX

Outcome: Relief system eliminated before fabrication; shell shortened; piping simplified.

Issue: An EPC firm was designing a new natural gas heater. Sizing the low-pressure side relief system for the full-bore tube rupture scenario required two large PSVs, a piping collection system, an oversized relief nozzle that forced a shell extension, and significant additional cost and footprint. The owner wanted to know whether all of that was actually necessary before fabrication began.

Solution: Equity Engineering performed a TRCA in accordance with API 521, evaluating the exchanger for vibration risk, erosion, tube-to-tubesheet joint integrity, damage mechanisms, and fatigue.

Result: The full-bore tube rupture scenario was determined to be non-credible. The oversized relief system was eliminated from the design. A properly sized PSV for the governing fire case was selected, and the relief piping was greatly simplified — before fabrication began. Asking the question early meant every change came at the lowest possible cost.

Case Study: Existing Exchanger — Net Gas Compressor Discharge Cooler

Midstream / gas processing | Gulf Coast, USA

Outcome: Rupture disk installation avoided; shutdown eliminated; inspection program defined.

Issue: A compressor discharge cooler with a significant pressure differential between the high-pressure tube side and the shell side was flagged during a revalidation study. The anticipated remedy was rupture disk installation, a costly modification requiring a shutdown. Before committing to that scope, the owner asked Equity Engineering to assess whether the scenario was actually credible.

Solution: Equity Engineering performed a full TRCA across all four assessment pillars, including a damage mechanism review of both the process-side and utility-side environments.

Result: The full-bore tube rupture scenario was determined to be non-credible. The rupture disk installation was avoided entirely. The determination was conditioned on implementing a targeted inspection program and adhering to MOC requirements for any future process changes, thus ensuring the conclusion remains defensible over the life of the equipment.

Frequently Asked Questions (FAQs)

How long does a tube rupture credibility assessment take?

Most TRCAs can be completed in 6 to 10 weeks — significantly faster than the 6 to 12 months typically required to scope and execute a hardware-based solution.

What does API 521 say about tube rupture credibility?

API STD 521 recognizes two mitigation approaches. Mitigation 1 calls for proper sizing of the low-pressure side to account for the full-bore tube rupture. Mitigation Method 2 allows facilities to perform a detailed analysis demonstrating that a full-bore tube rupture is non-credible for a specific exchanger, eliminating the need for oversized overpressure protection for that scenario.

What happens if the TRCA finds the tube rupture scenario is credible?

In over 99% of Equity Engineering’s 200+ assessments, the scenario was found to be non-credible. In the very few cases where credibility is established, the TRCA defines exactly what modifications or process changes are required and provides the engineering basis for sizing the appropriate relief system.

Can a TRCA be performed on a new exchanger during design?

Yes. A design-phase TRCA can eliminate oversized relief infrastructure before fabrication begins, when material and design changes are still straightforward and inexpensive to implement.

What if we don’t have inspection data for the exchanger?

This is common. Many heat exchangers, especially those on longer inspection intervals, have never had a bundle pull or internal tube inspection. Equity still proceeds with the TRCA. We work from design data and conservative assumptions. If the TRCA determines non-credibility based on the available information, we recommend a baseline bundle inspection at the next available opportunity, not as a condition to issue the report, but as a condition to sustain the non-credibility determination going forward.

Is a TRCA accepted by OSHA as resolution of a PHA action item?

A TRCA produces PE-stamped, API 521-compliant documentation that can be placed directly into the relief system basis file, providing audit-ready evidence that the overpressure scenario was rigorously evaluated and addressed.

Recommended Reading

Pressure relief & process technology expertise

Equity Engineering’s Process, Automation, Controls, and Electrical (PACE) team has completed more than 200 TRCAs over 18 years, spanning refining, petrochemicals, midstream, power generation, specialty chemicals, and emerging industries including fusion and concentrated solar power. That track record means our credibility determinations are grounded in field experience across a wide range of exchanger types, service environments, and damage conditions, rather than conservative defaults.

Equity Engineering developed its formal TRCA procedure based on API 521 in 2010. Since then, our methodology has been continuously refined through direct involvement in API committee work and real-world application across more than 200 assessments.

  • Phil Henry, P.E. — API 520 Task Force Chair for 29 years, and a principal contributor to the tube rupture guidance in API 521
  • PE-stamped, API 521-compliant deliverables that close PHA and revalidation findings directly
